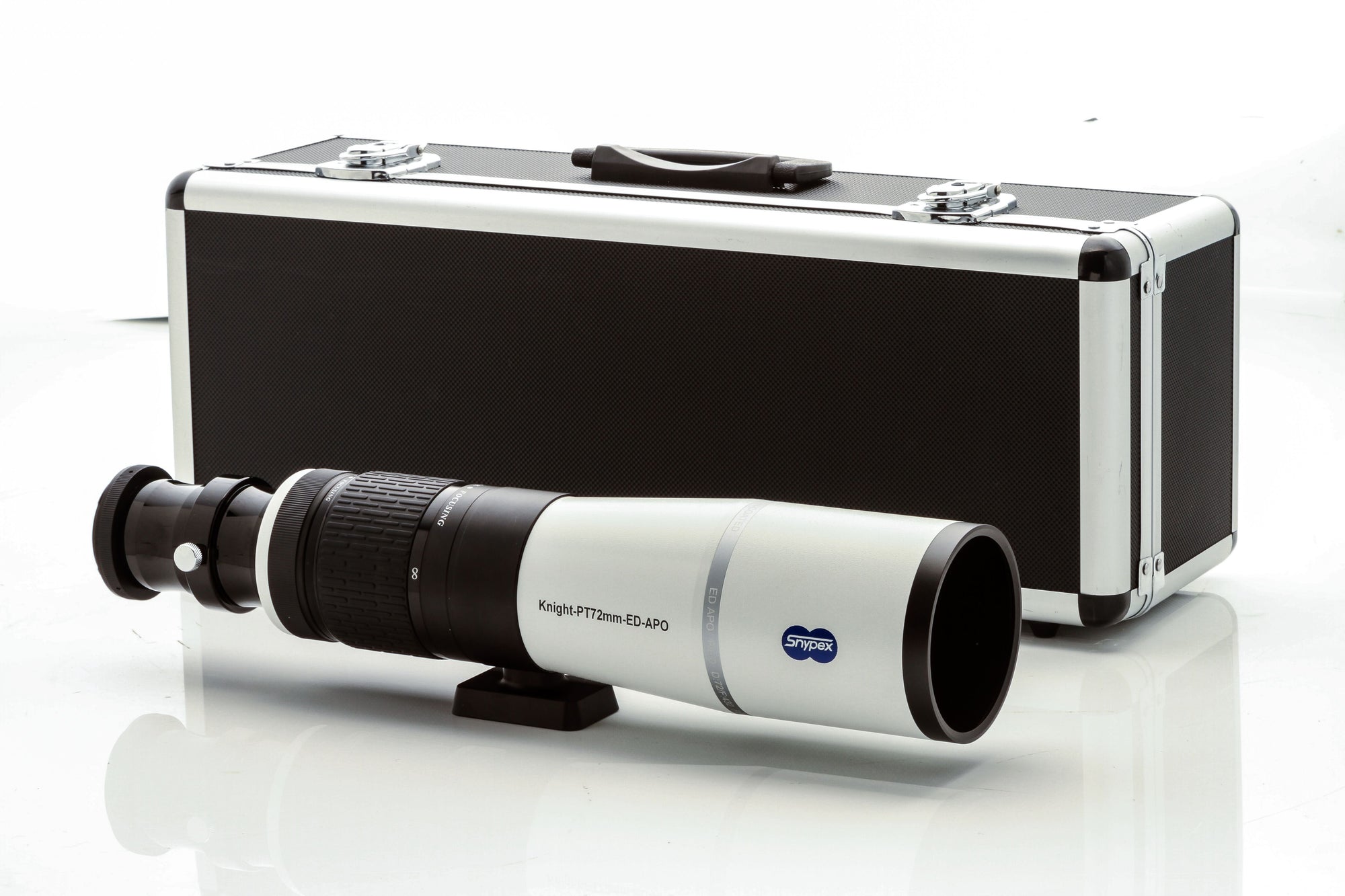

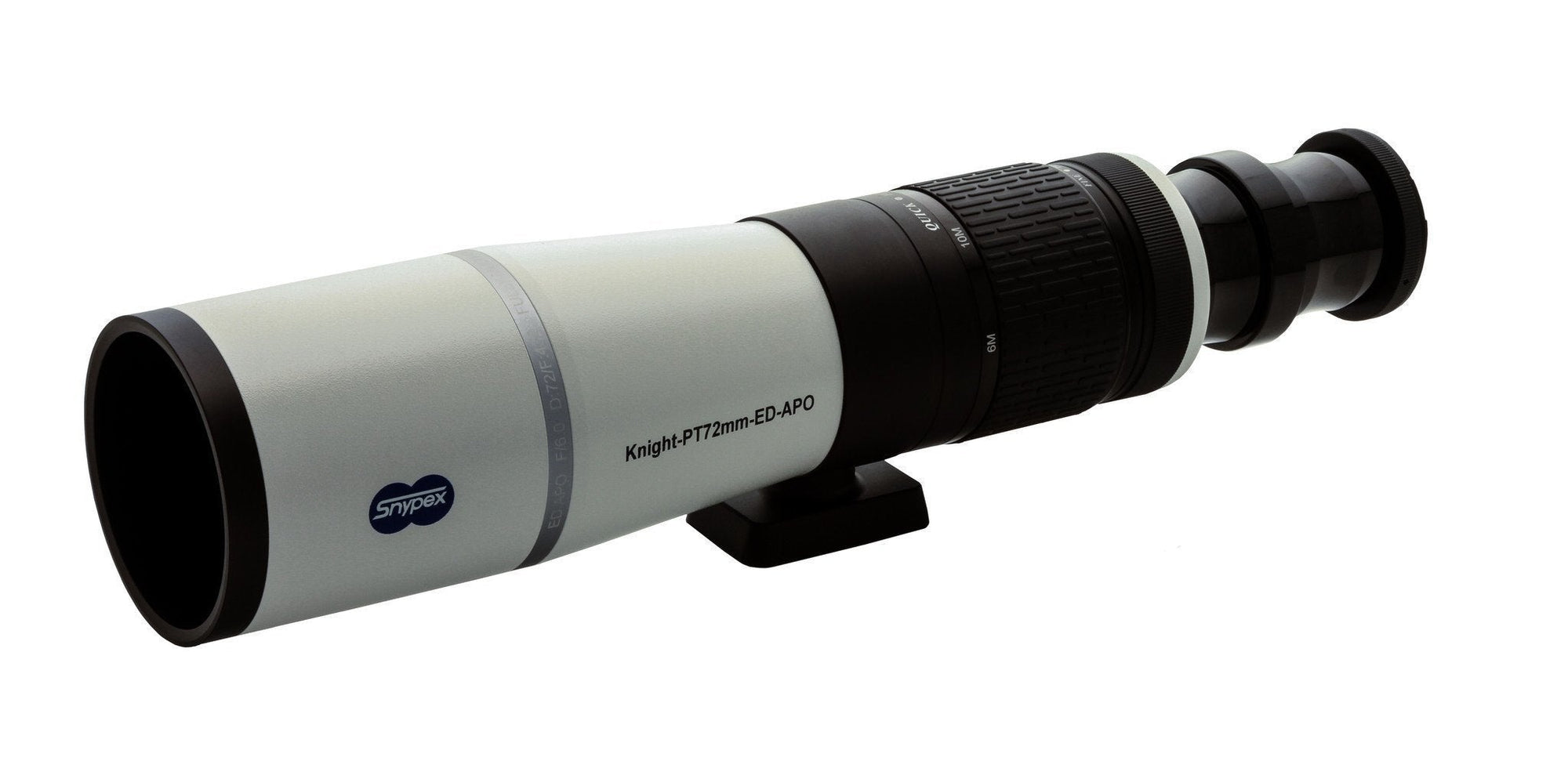

The Snypex Knight photography Digiscope PT 72mm-ED -APO is a multi-functional, dual speed, straight-angled photography digiscope. It features a double APO (apochromatic) 72mm lens with ED (extra-low dispersion) glass. The DSLR lens type focuser is versatile, allowing users to view up close, sharp, high-quality images. The Snypex PT 72mm-ED APO is a digiscope that can be used both day and night. It is strong and durable, made with an aluminum alloy. It comes with a portable and protective aluminum case.

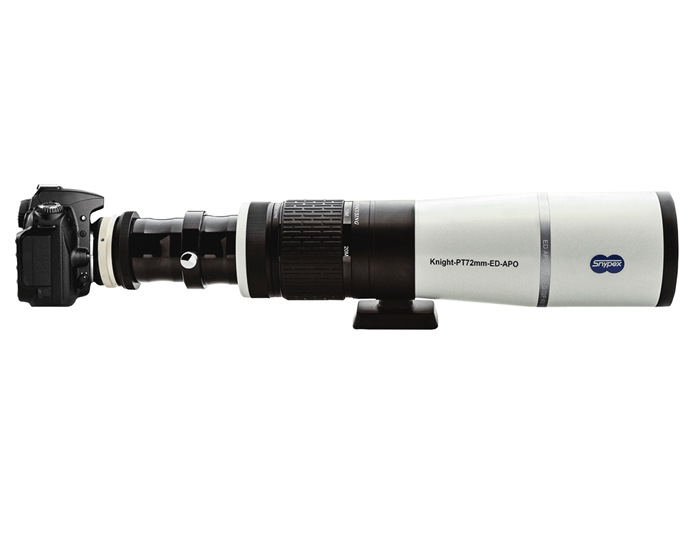

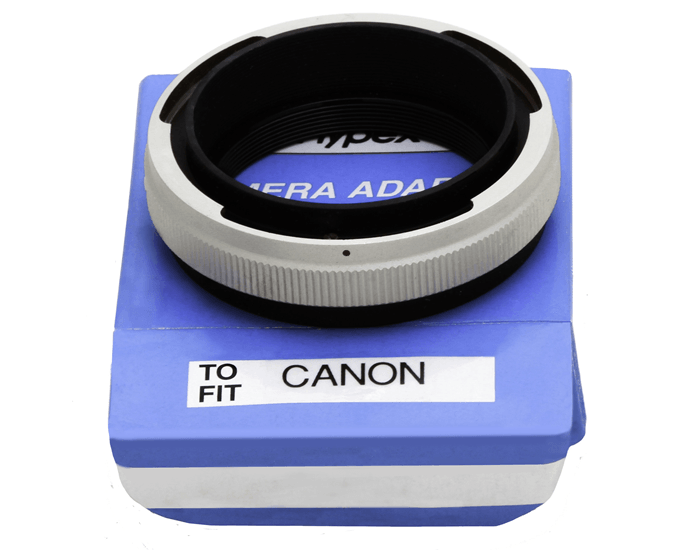

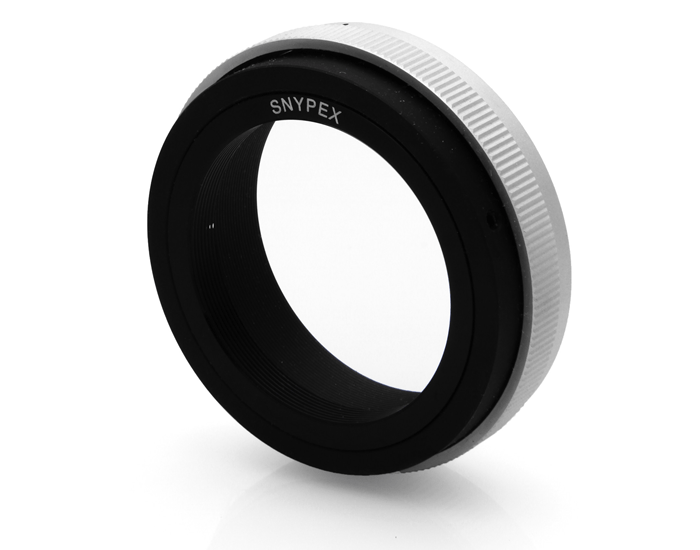

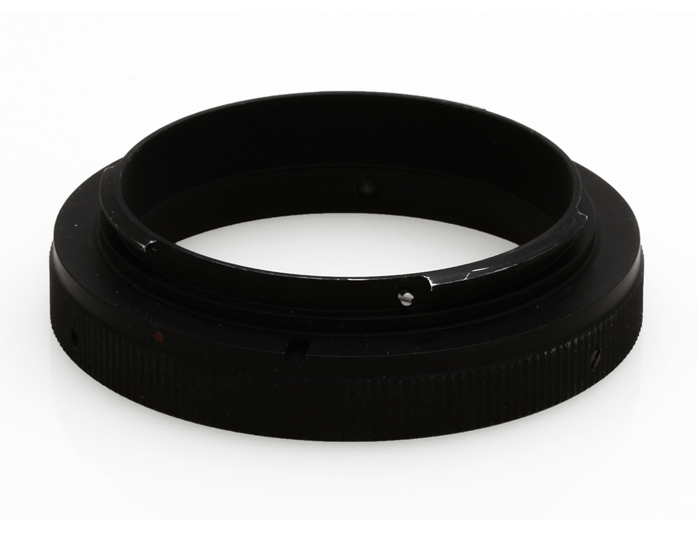

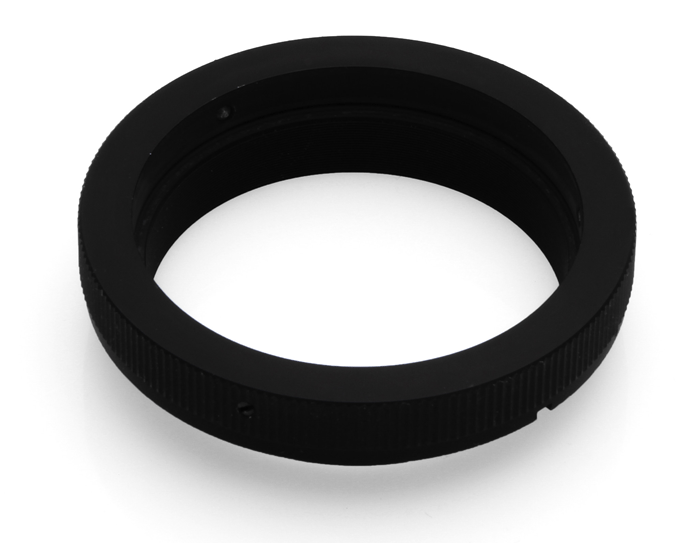

The Knight Digiscope PT 72mm f/6.0 ED-APO Photography digiscope from SNYPEX is a powerful and versatile purpose-built optic for digiscoping with DSLR cameras. In place of an eyepiece holder are T-mount threads for attaching camera-specific T-2 adapters that allow your DSLR to be properly positioned on the scope's focal plane. Extra-low dispersion (ED) glass and an apochromatic doublet lens configuration virtually eliminate chromatic and spherical aberrations. With these aberrations corrected, views are seen with true high-contrast color and virtually no distortion across the entire field of view. Anti-reflection fully multi-coated optics maximize the light entering the objective lens to make the views bright with enhanced low-light performance. With an optional eyepiece adapter, the scope can be used as a conventional angled-view spotting scope. Its aluminum housing is coated with a chip and scratch resistant durable white paint. The focuser is based on the familiar DLSR lens system with a large textured coarse focus ring and a smaller 1:10 fine focus ring. The textures of the coarse and fine focus are different so you can tell the difference by feel. To mount the scope, there are two 1/4"-20 tripod mounts. These mounts are placed at either end of the shoe and help you balance the weight of the scope. The shoe has an integrated dovetail plate that fits on compatible quick-release heads. A reinforced hard carrying case, with a custom die-cut foam interior, is included for protection while in storage or during transport. Also you can convert the snypex PT72mm to Spotting Scope By adding the 45 Degreeangle and with Snypex 14.5mm Eyepiece. you can attach our SNYPEX X-WINGUniversal Smartphone Adapter to our Digiscope so you can easily Convert your Scope to a Camera with 433mm Telegraphic which allowed you to Take Videos and Capture Images at Very High Quality. SPECS
SNYPEX KNIGHT PHOTOGRAPHY DIGISCOPE PT 72mm Lens
- Multi-functional, dual speed, straight-angled photography Digiscope
- Features a double APO (apochromatic) 72mm lens with ED (extra-low dispersion) glass
- Focal Length / f-stop: 432mm / f6.0
- Dual speed DSLR lens type focuser
- Near focus: 9.84 ft. (3m)

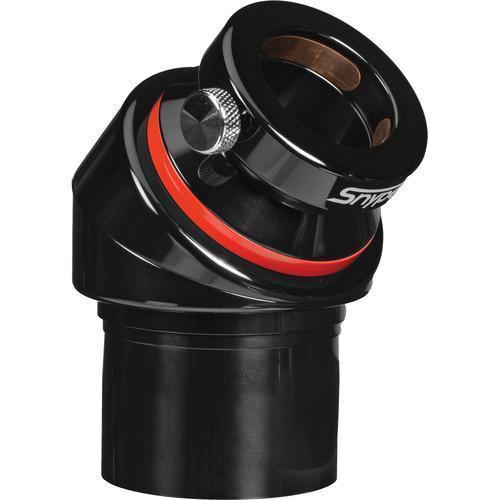

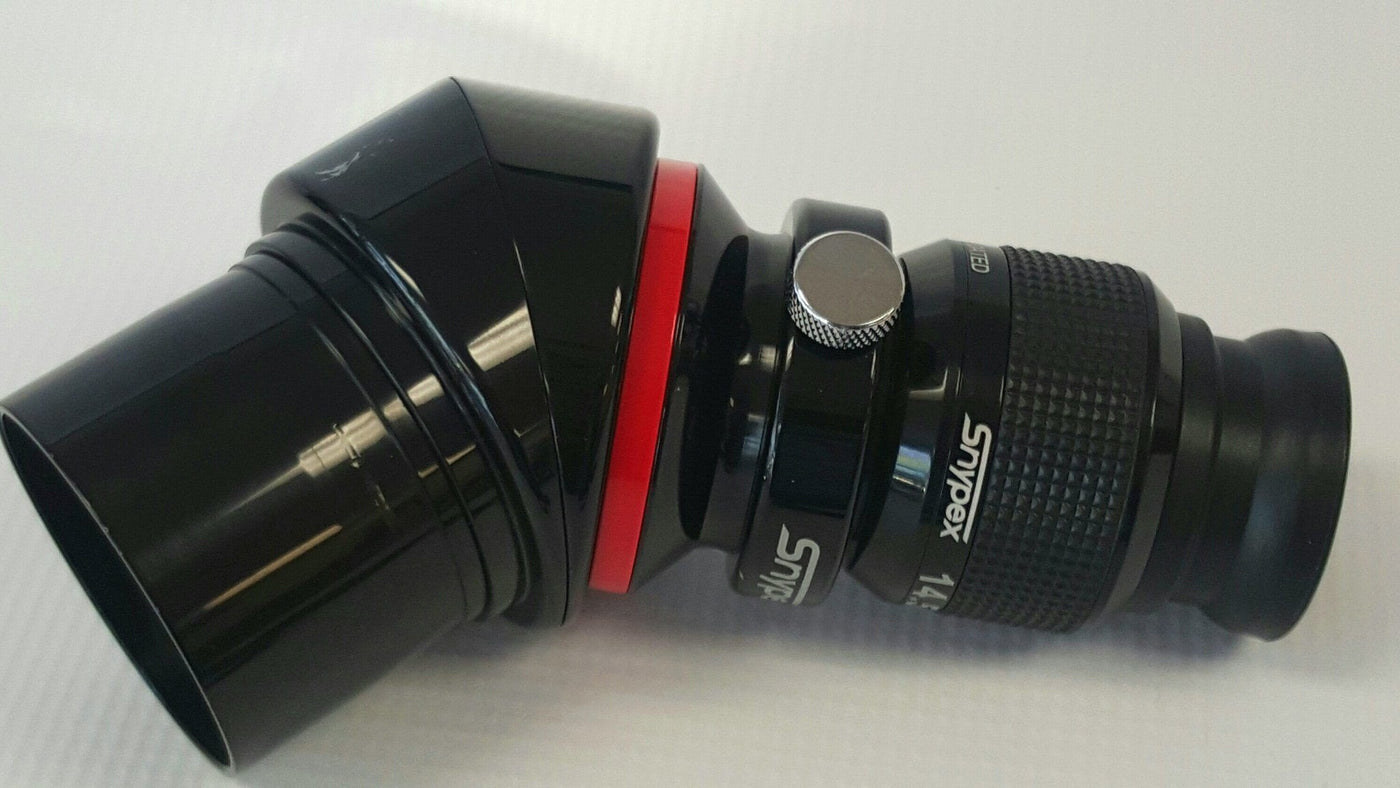

- Optional angle adapter and 14.5mm eyepiece with 20mm long eye relief available for conversion to a spotting-scope.
Objective Diameter: 72mm Glass: Extra Low Dispersion (ED) Glass Lens Type: doublet apochromatic Lens Focusing System: DSLR Lens Type Focuser, Dual speed focuser Anti-reflective Coating: FMC (Fully Multi-Coated) Near focus: 3m Focal Length: 432mm Dew shield/sun: Yes Construction Material: Aluminum with durability of the finish Comes in an aluminum case Dimension: 465x157x131mm Weight: 1.95kg (tube only) BAR CODE GTIN: 00854725004061 SNYPEX Knight PT 72mm f/6.0 ED-APO Photography Digiscope
Please check manual detail here.
